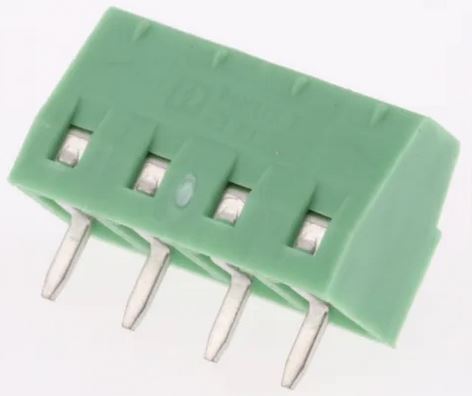

PCB Screw Terminal Block 4-way 3.81mm Pitch (suits PSX units)

£4.42 Inc. Vat

Availability: In stock SKU: 2204361
Total:

Details

MKDS 3.81mm PCB Terminal Blocks

Features and Benefits

• Robust moving cage principle accepts wires up to 1.5 mm² (1.0 mm² stranded)
• Reliable strain relief due to separate solder pin and terminal sleeve
• Rated at 200 V/12 A
• Polyamide 6.6 Krilen UL94V0

4 Way Vertical Screw Header, 3.81 mm Pitch – MKDS 1/ 4-3,81 – 1727036

Use this header from Phoenix Contact to make multiple connections to your PCB (printed circuit board). The unit has four screw-in connectors for the transmission of power and data. It’s attached with solder pins and can be used in industrial applications.
This component offers a large surface area for attachment while still maintaining a compact size. Its integrated screw-locking system securely holds wires, eliminating the need for re-tightening. This technology also prevents cables from being accidentally disengaged. The unit’s solder pins are separated from the terminal sleeve for improved strain relief and to prevent snapping wires.
The component features a high-strength plastic housing that’s recyclable and halogen-free. It has a UL (Underwriter Laboratories) 94 V-0 rating, which certifies that it’s flame-retardant and stops burning within 10 seconds in case of fire.
• Current rating of 13.5 A
• Voltage rating of 400 V
• Four ways
• Through-hole mounting type
• Solder termination method
• Pitch of 3.81 mm
• Wire size of 30 to 16 AWG (American wire gauge)
• Green nylon unit
• Meets UL 1059 standards for terminal blocks intended to permanently support and insulate wire terminations and joints from each other

Additional information

Weight0.01 kg
Dimensions2 × 1 × 1 cm
