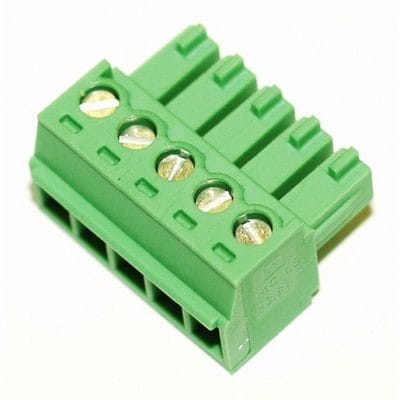

Terminal Plug 5-Way 3.5mm Pitch – Suits ESU Switchpilot

Terminal Plug 4-Way 3.5mm Pitch – Suits ESU Switchpilot V1.0
Terminal Plug 3-Way 3.5mm Pitch – Suits ESU
0 out of 5
( There are no reviews yet. )

£3.88 Inc. Vat £1.94 Inc. Vat

Offer Ends
Availability: In stock SKU: 101399
Total:

Details

Terminal block 5-way, free plug, 3.5mm pitch, suitable for use in a variety of PCB applications. The plugs have been designed with a steel yoke to create a reliable connection suitable for use in industrial controls, information technology and other applications requiring a highly reliable interconnection with the flexibility of simplified modifications and installations.

  • Pitch: 3.5mm
  • Rated voltage: UL–300V; IEC–130V
  • Rated current: UL–8A; IEC–8A
  • Wire size: 1.5mm²
  • Solid wire size: 28–16 AWG
  • Stranded wire range: 28–16 AWG
  • Rated surge voltage: 1.6/ 1.25/ 3kV
  • Torque: 0.2Nm
  • Screw: M2
  • Wire strip length: 6–7mm
Additional information
Weight0.01 kg
Dimensions1 × 1 × 1 cm
