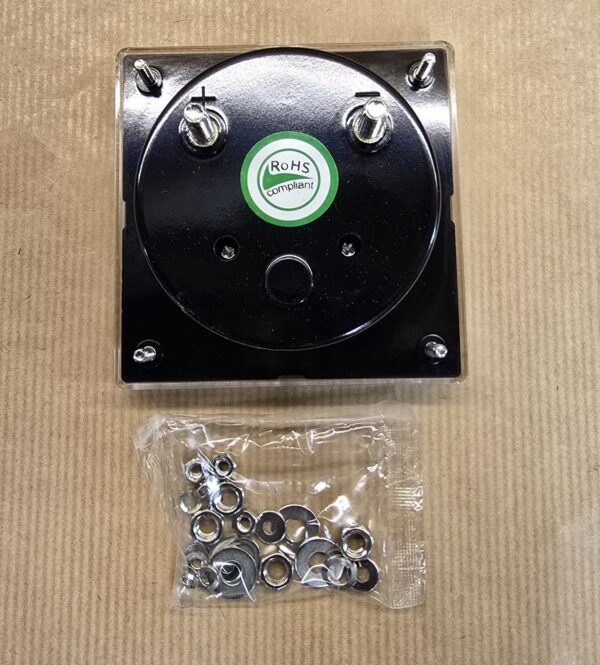

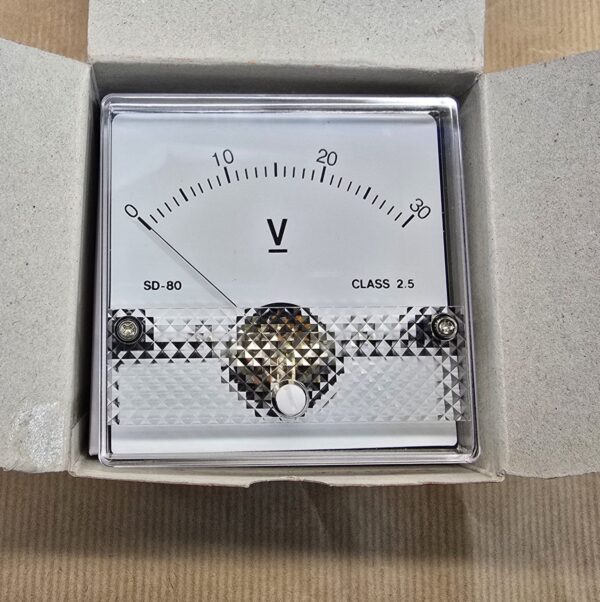

Panel Meter SD80 Analogue 30V
Original price was: £22.26.£15.00Current price is: £15.00. Inc. Vat
- Description
- Additional information
- Reviews (0)
- Help
Details
Analogue Panel Meter, Moving Coil Type, Left Zero Hand, DC Current, 0A to 10A
Product Overview
The SD80/0-20V is a Moving Coil Panel Meter with red/black pointer and aluminium scale. It offers left zero hand pointer position and within width of pointer zero position difference.
- Over current – Within 5 items of rate current
- 1500R ±10% Coil resistance
- 100µADC ±2.5% Current sensitivity
- ±0.4m/m Friction tolerance
- 90°C Measuring range
Applications
Industrial, Clock & Timing, Test & Measurement
Technical Specifications
Meter Function: DC Voltage
Meter Range: 0V to 30V
Additional information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 6 × 6 × 4 cm |
